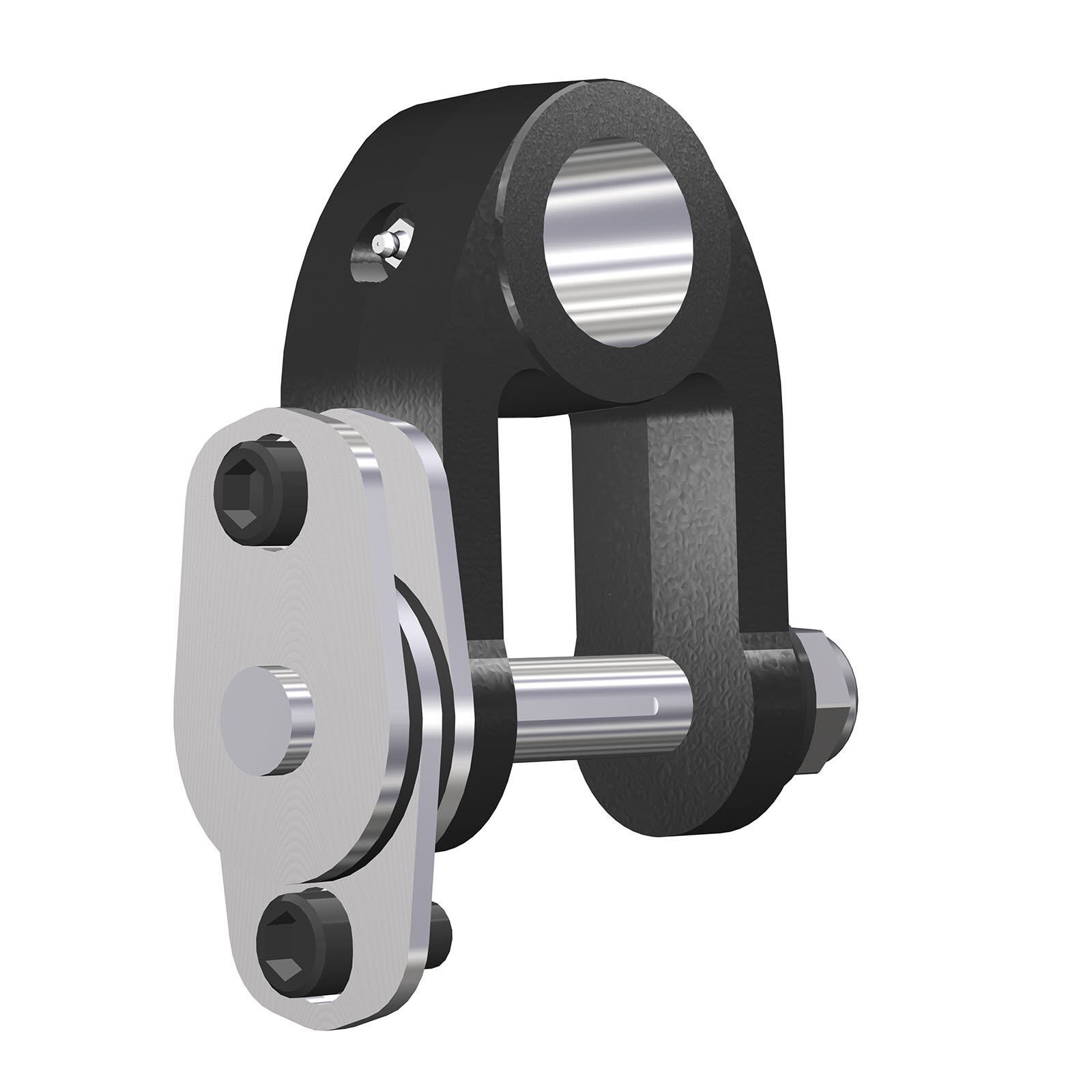

Single swing damper 75-60


Technical data

Part No. 5030005
Brake against rotator Multiple disc brake
Upper interface 60 mm
Lower interface 75 mm
5 kg
40 kN

Bushing

Diameter, upper bushing (C) Bronze Composite
Ø45 mm 2 x 1005495 -
Ø40 mm - 1 x 5002409
Ø35 mm - 1 x 5002410
Ø30 mm - 1 x 5002411
Ø25 mm - 1 x 5002412

The product is supplied with a pin set in the lower position. Supplemented with a bushing in the upper position according to the table.

We reserve the right to make product changes. For further technical information relating to integration, please contact rotator@indexator.com

Single swing damper 75-60
A 76 mm
B Ø25 mm
C See table
G 60 mm
H 110 mm
Bushing
Diameter, upper bushing (C) Bronze Composite
Ø45 mm 2 x 1005495 -
Ø40 mm - 1 x 5002409
Ø35 mm - 1 x 5002410
Ø30 mm - 1 x 5002411
Ø25 mm - 1 x 5002412
