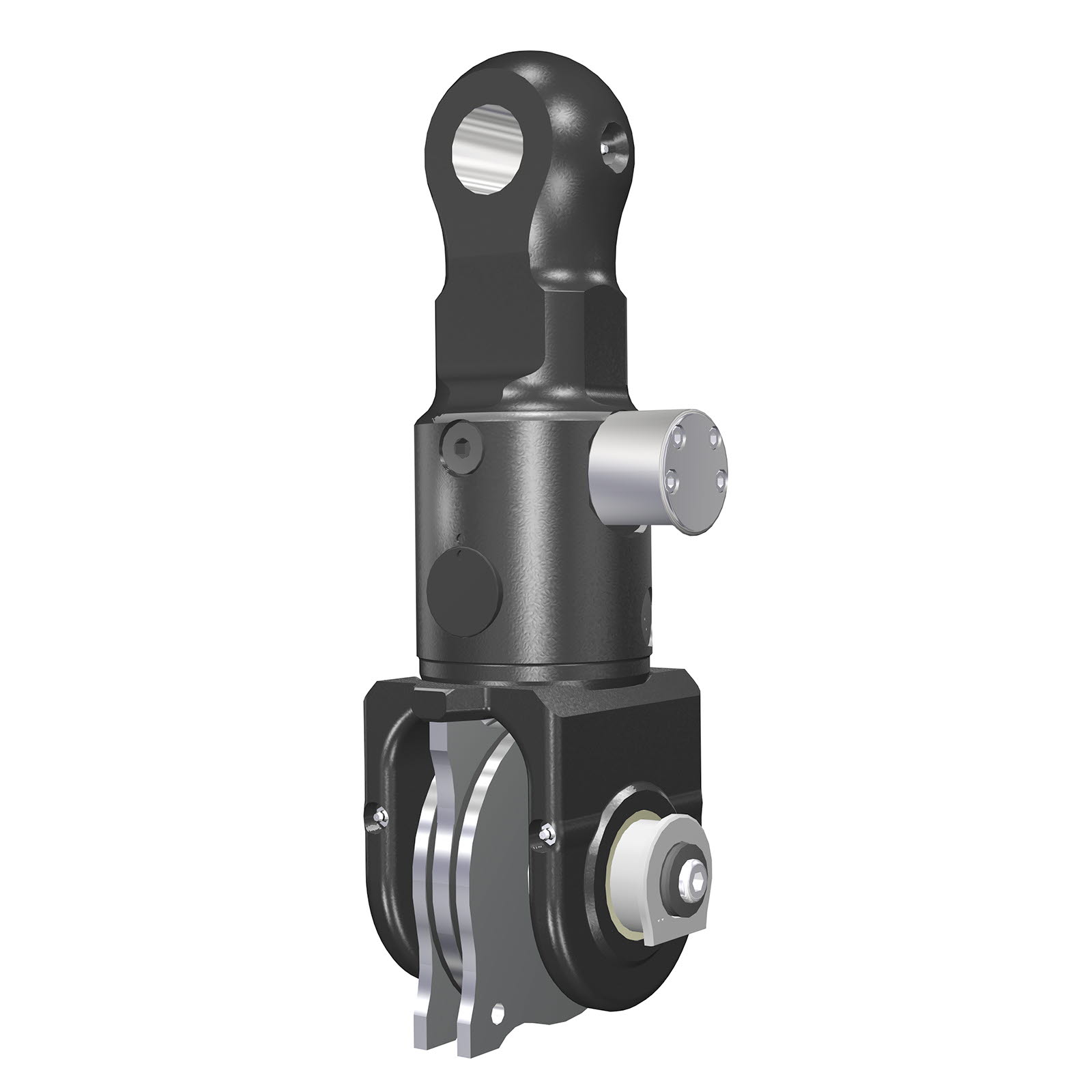

Weighing link MPB1-80 5T


Technical data

Part No. 5016585
Brake against rotator MPB1
Upper interface 80 mm
Lower interface MPB1 144 mm
47 kg
50 kN
15 kN
30 kN
Max rotator size G 121

Bushing

Diameter, upper bushing (C) Steel Bronze ManganBronze Composite
Ø45 mm 2 x 1002294 2 x 1003193 2 x 5006672 -
Ø40 mm 2 x 5002468 - 2 x 5006685 1 x 5002401
Ø35 mm - - 2 x 5006687 1 x 5002402
Ø30 mm - - - 1 x 5002403
Ø25 mm - - - 1 x 5002404

The product is supplied with a pin and bushing in the lower position. The product is supplemented with a bushing in the upper position according to the table.

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

Weighing link MPB1-80 5T
A MPB1
B MPB
C See table
G 80 mm
H 402 mm
Bushing
Diameter, upper bushing (C) Steel Bronze ManganBronze Composite
Ø45 mm 2 x 1002294 2 x 1003193 2 x 5006672 -
Ø40 mm 2 x 5002468 - 2 x 5006685 1 x 5002401
Ø35 mm - - 2 x 5006687 1 x 5002402
Ø30 mm - - - 1 x 5002403
Ø25 mm - - - 1 x 5002404
