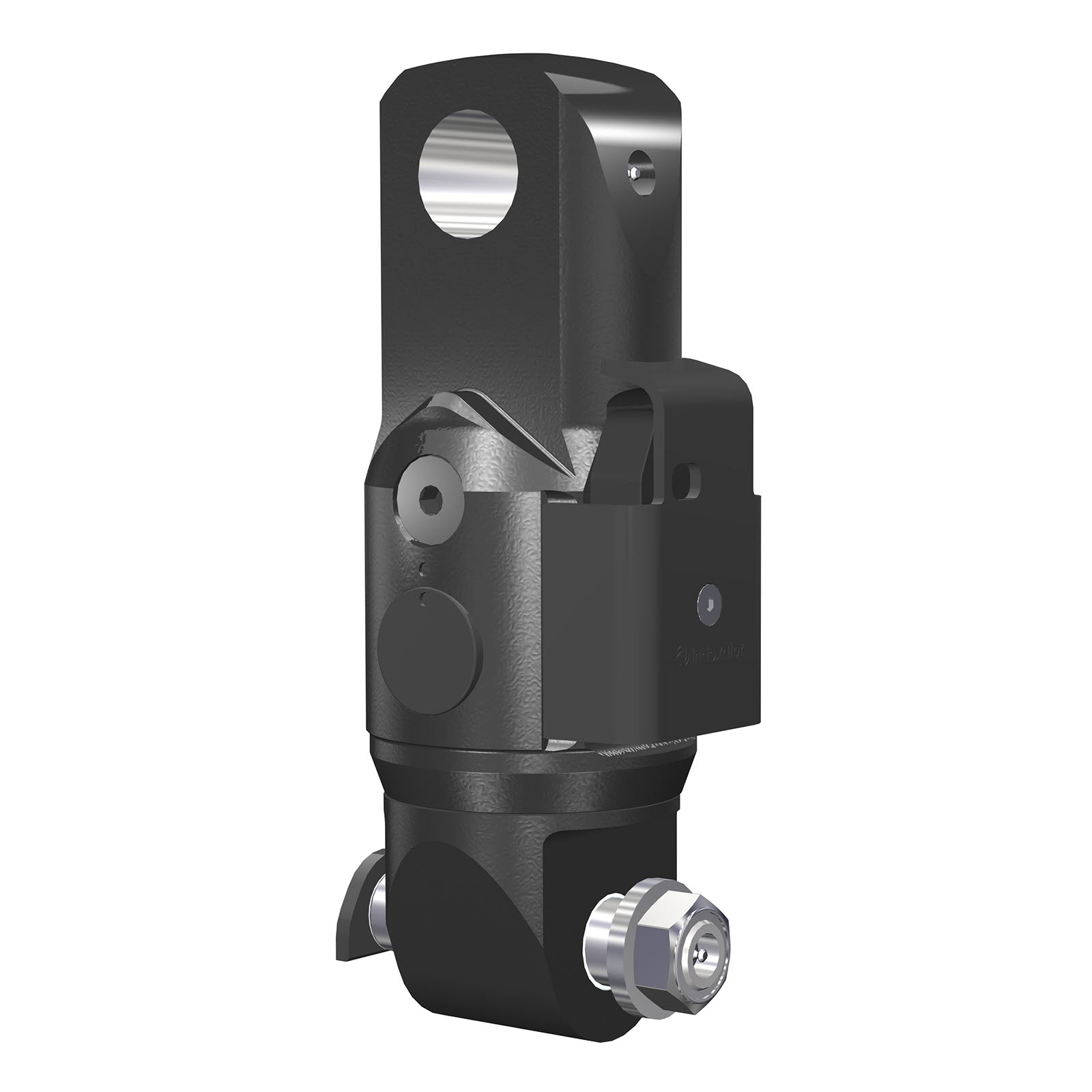

Weighing link 80-80 3T RA


Technical data

Part No. 5060007
Upper interface 80 mm
Lower interface 80 mm
30 kg
30 kN
15 kN
30 kN
Max rotator size GV 12

Bushing

Diameter, upper bushing (C) Steel Bronze ManganBronze Composite
Ø45 mm 2 x 1002302 2 x 105503 2 x 5006683 -
Ø40 mm - - 2 x 5002467 2 x 5002414

RA = suitable designed for wireless transmission.

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

Weighing link 80-80 3T RA
A 80 mm
B Ø35 mm
C See table
G 80 mm
H 303 mm
Bushing
Diameter, upper bushing (C) Steel Bronze ManganBronze Composite
Ø45 mm 2 x 1002302 2 x 105503 2 x 5006683 -
Ø40 mm - - 2 x 5002467 2 x 5002414
