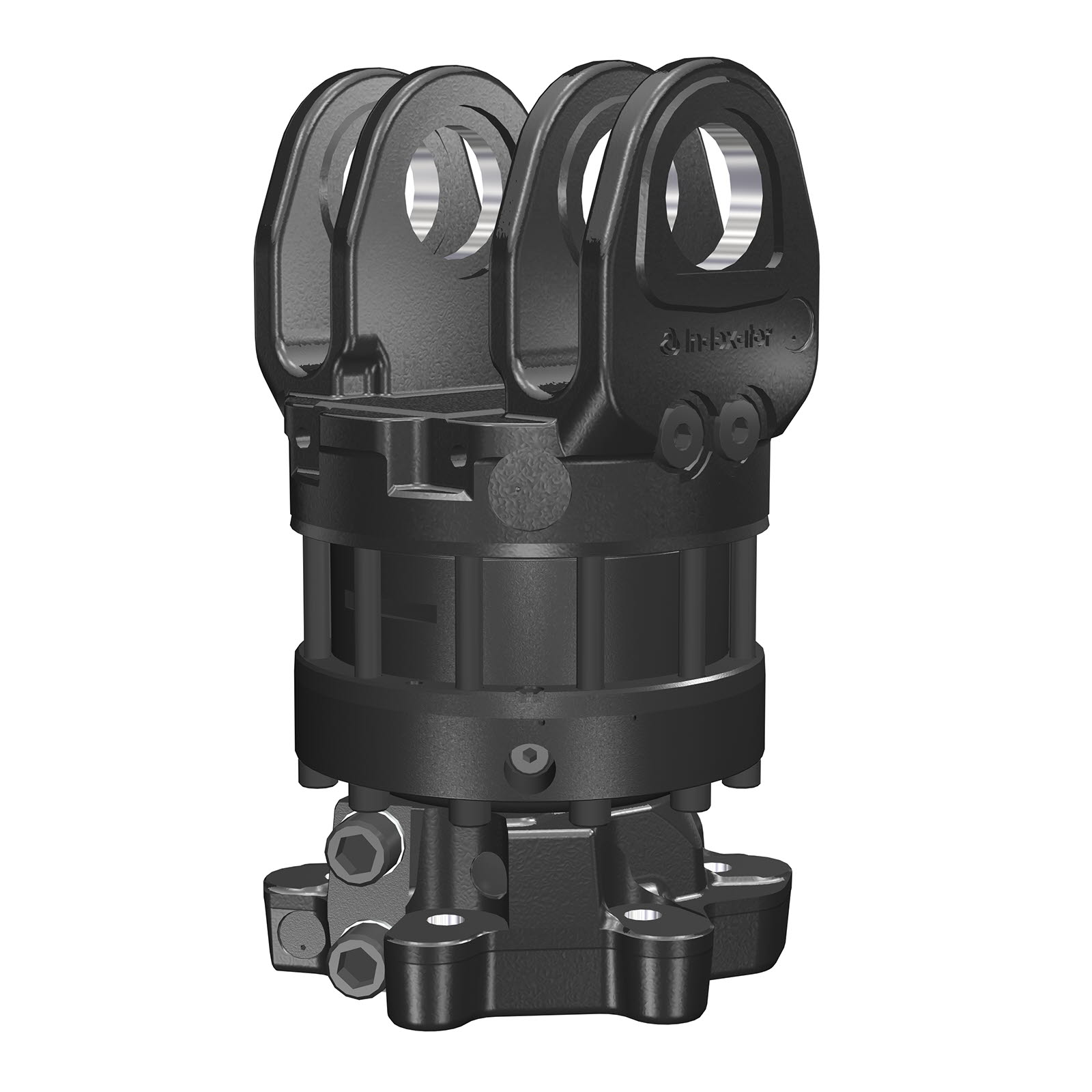

Rotator H 172 A LS


Technical data

Part No. 7214065
Type of rotator Harvester head rotator
63.7 kg
360°
160 kN
50 kN
3300 Nm
35 l/min
25 MPa

Function

Load Sense1

Interface

Upper interface MPB2 184 mm
Lower interface Ø 243 mm

1 A rotator with the shortening LS is not equipped with restrictors (unlike our standard rotators). This means that the oil flow from the base machine has to be adapted.

Rotator with only axial connections for a grapple function.

Adapter sets are available for alternative connections.

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

H 172 A LS
A MPB2
B MPB
C Ø173 mm
D Ø17 mm
F 40 mm
H 352 mm
K 42 mm
L Ø248 mm
Connections
Upper connection G 1/2
Lower connection G 1/2
