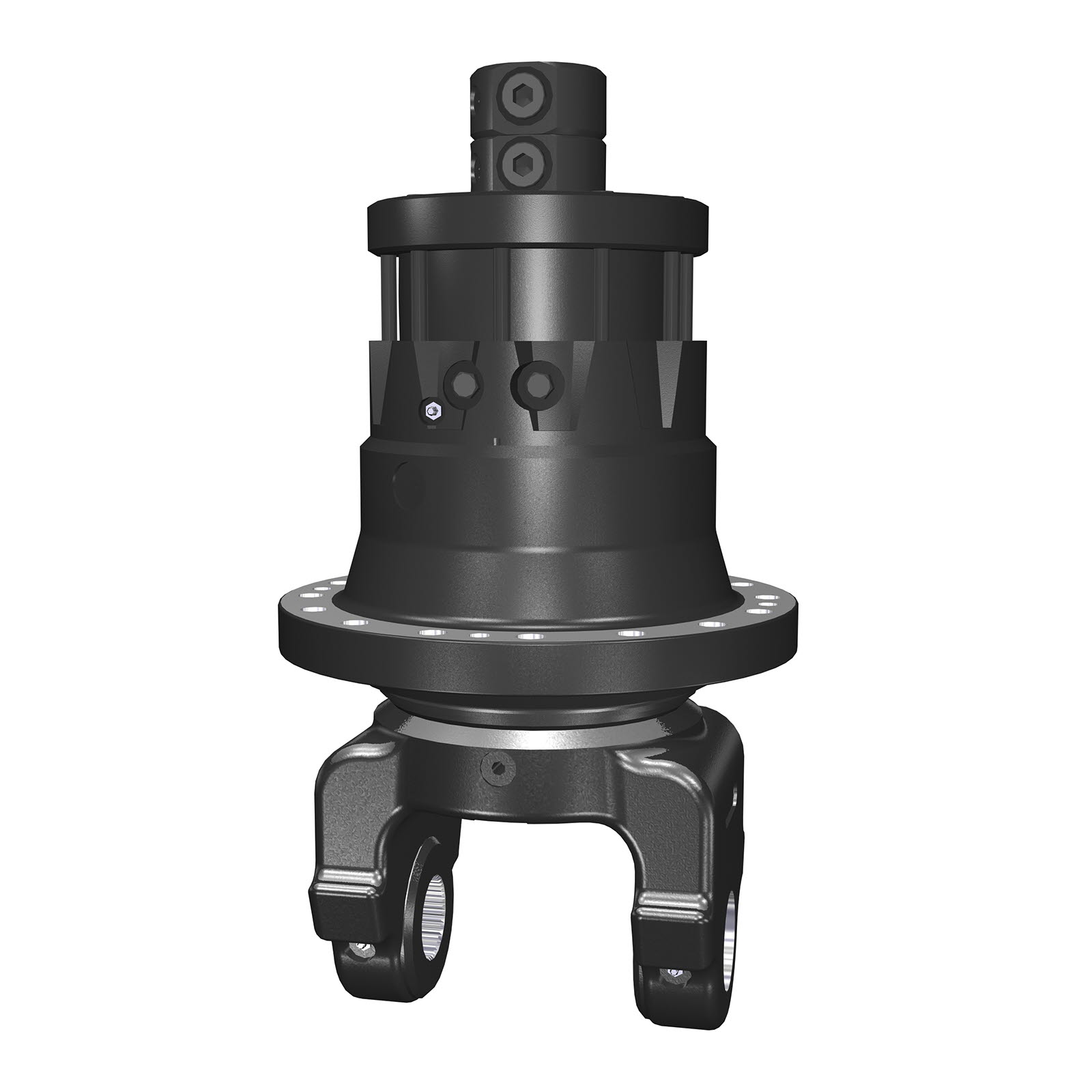

Rotator SR 210B


Technical data

Part No. 8000935
Type of rotator Skidder
198 kg
360°
±190 kN1
±130 kN1
4100 Nm
35 l/min
25 MPa
25 MPa
25 MPa

1 See chart on the dimensional drawing.

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

SR 210B
A 168,9 mm
B Ø76,2 mm
C 297,5 mm
D Ø390 mm
E Ø311,5 mm
F 36 mm
G 712 mm
I 386 mm
J Ø346 mm
K Ø16 mm
L Ø21 mm
M 90°
N 22,5°
O 11,3°
Q Splines pitch 16/32
Connections
Upper connection 1 1/16”-12 UNF
Lower connection 1 1/16”-12 UNF
Lower R 9/16”-18 UNF
