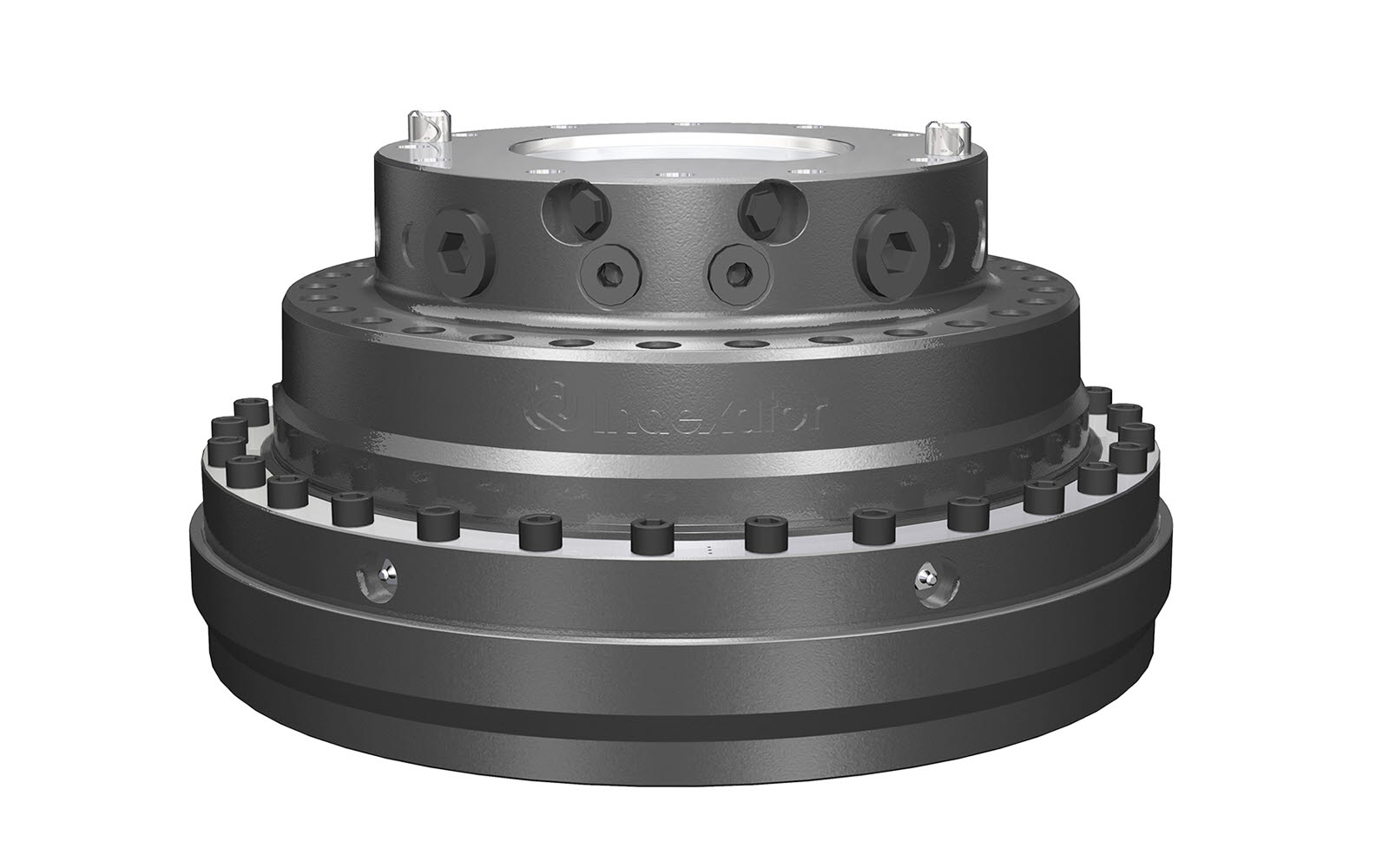

Rotator XR 400 T

Technical data

Part No. 8400012
Type of rotator Grapple rotator
180 kg
±550 kN
±200 kN
±140 kN
4100 Nm
35 l/min
25 MPa
40 MPa
40 MPa


Upper interface Ø 265 mm
Lower interface Ø 340 mm

Oil distributor ordered separately.

Can be supplemented with hose guard.

Pressure limiting valves fitted.

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact

XR 400 T
A Ø300 mm
B M20
C 34 mm
D Ø170 mm
E Ø265 mm
F Ø488 mm
G 99 mm
H Ø22 mm
I Ø340 mm
J 45°
K Ø474 mm
L 244 mm
M 30°
N 34°
O Ø22 mm
P 15°
Q M12
R 45°
S Ø116 mm
T 29 mm
U 26°
Y Ø22 mm
Z Ø292 mm
Upper G G0 G 1
R G 1/2
