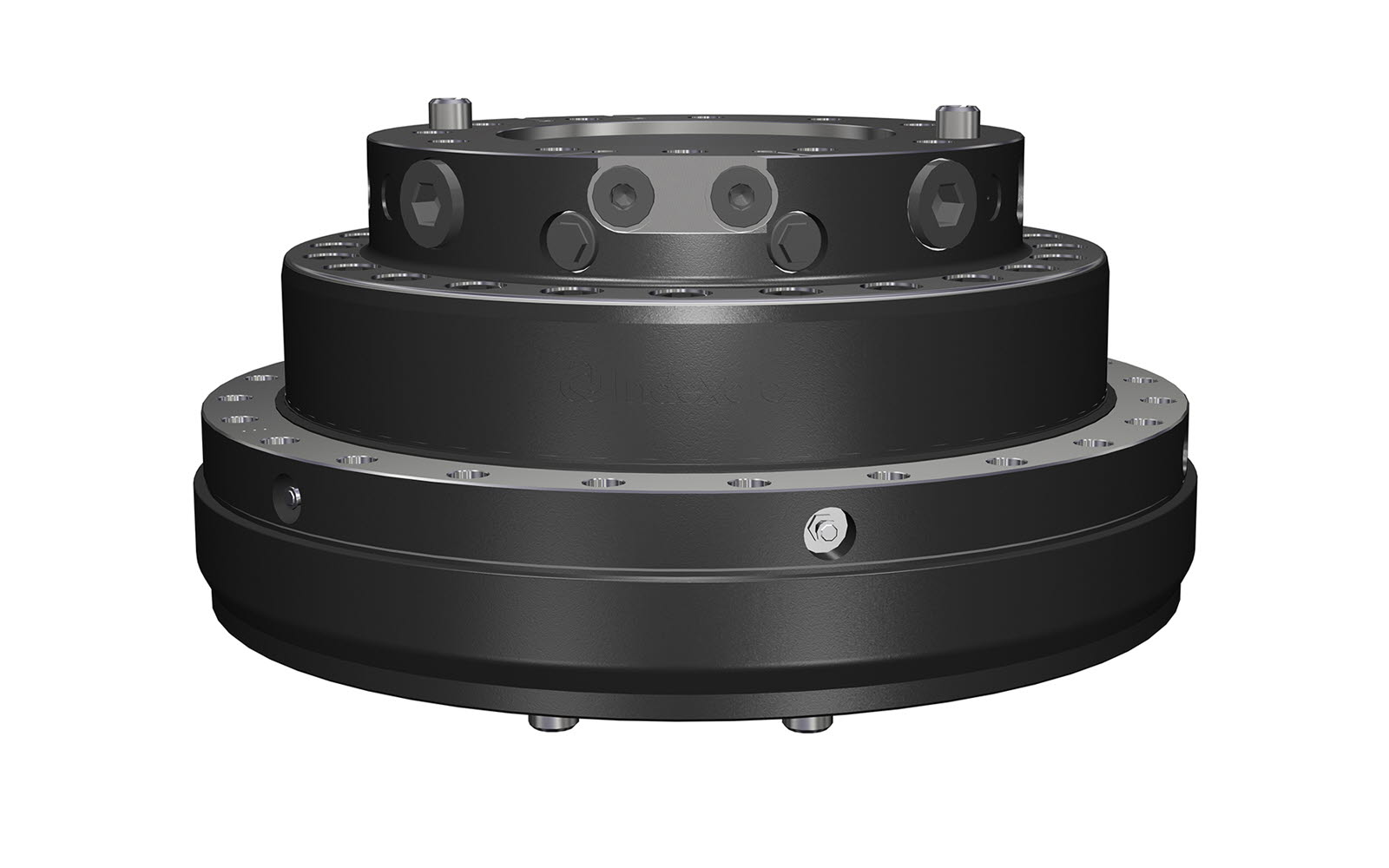

Rotator XR 500 C HPL


Technical data

Part No. 8500003
Type of rotator Grapple rotator
216 kg
360°
±700 kN
±250 kN
±180 kN
7000 Nm
40 l/min
25 MPa
35 MPa
35 MPa
40 MPa

Function

Central lubrication

Interface

Upper interface 265 mm
Lower interface Ø 463 mm

Oil distributor ordered separately

Pressure limiting valves fitted.

For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

XR 500 C HPL
A Ø326 mm
B M24
C 37 mm
D Ø200 mm
E Ø265 mm
F Ø503 mm
G 98,5 mm
H Ø17,5 mm
I Ø463 mm
J 15°
K Ø490 mm
L 228,5 mm
M 30°
N 34°
O Ø22 mm
P 15°
Q M12
R 72°
S Ø140 mm
T 33 mm
U 26°
Connections
Upper X1 M10 x 1,0
G G0 G 1
R G 1/2

Manifold block
