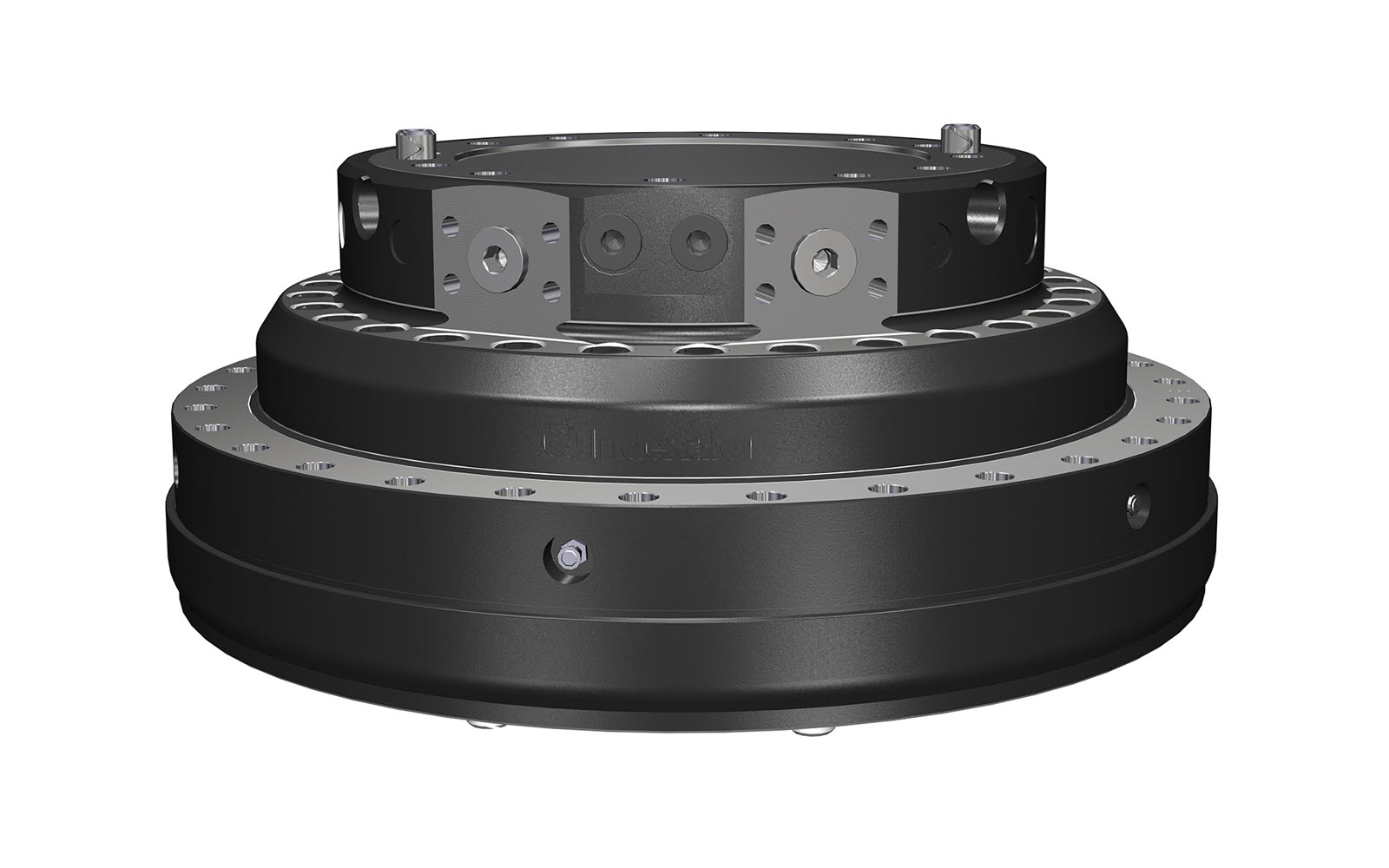

Rotator XR 600 C HPL


Technical data

Part No. 8600011
Type of rotator Grapple rotator
264 kg
360°
±850 kN
±300 kN
±200 kN
7000 Nm
40 l/min
25 MPa
35 MPa
35 MPa
40 MPa

Function

Central lubrication

Interface

Upper interface 300 mm
Lower interface Ø 535 mm

Oil distributor ordered separately

Pressure limiting valves fitted.

For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

XR 600 C HPL
A Ø384 mm
B M24
C 50 mm
D Ø260 mm
E Ø300 mm
F Ø575 mm
G 103 mm
H Ø17,5 mm
I Ø535 mm
J 12°
K Ø565 mm
L 231 mm
M 37°
N 30°
O Ø22 mm
P 12°
Q M12
R 72°
S Ø140 mm
T 33 mm
Connections
Upper X1 M10 x 1,0
G G0 SAE 6000 DN 25
R G 1/2

Manifold block
