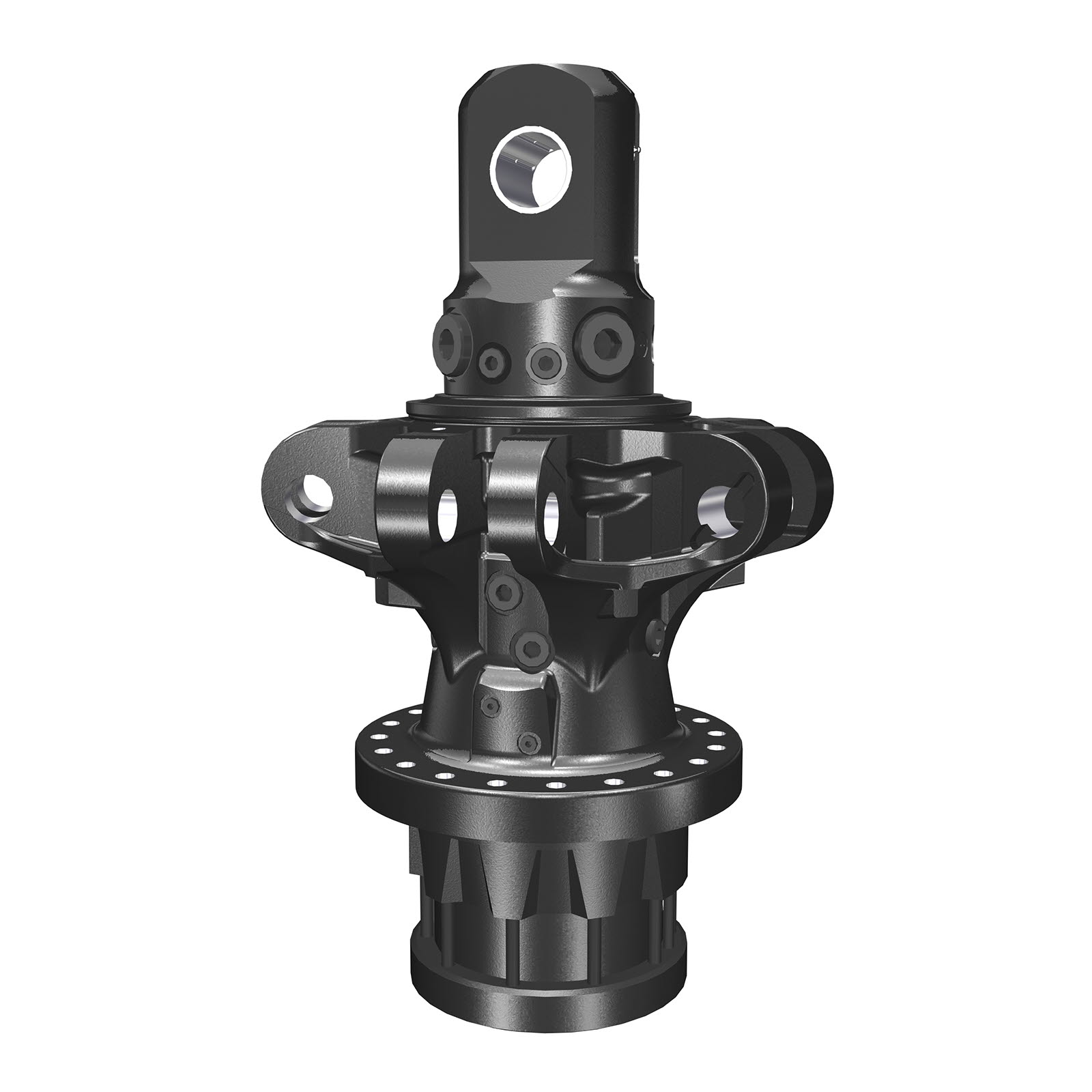

Rotator IR 25
Technical data
| Part No. | 8000980 |
|---|---|
| Type of rotator | Grapple rotator |
| 226 kg | |
| 360° | |
| ±450 kN | |
| ±200 kN | |
| 4100 Nm | |
| 35 l/min | |
| 25 MPa | |
| 35 MPa | |
| 35 MPa |
Interface
| Upper interface | 109 mm |
|---|---|
| Lower interface | Ø 342 mm |
Pressure limiting valves fitted in the motor.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| IR 25 | |
|---|---|
| A | 109 mm |
| B | Ø60 mm |
| C | Ø495 mm |
| E | 258 mm |
| F | Ø342 mm |
| H | Ø17 mm |
| I | Ø300 mm |
| J | Ø40 mm |
| M | 190 mm |
| O | Ø250 mm |
| T | 263,5 mm |
| Connections | ||
|---|---|---|
| Upper | G G0 | M33 x 2,0 |
| R | M16 x 1,5 | |
| Lower | G | M22 x 1,5 (x5) |
| G0 | M22 x 1,5 (x5) | |
