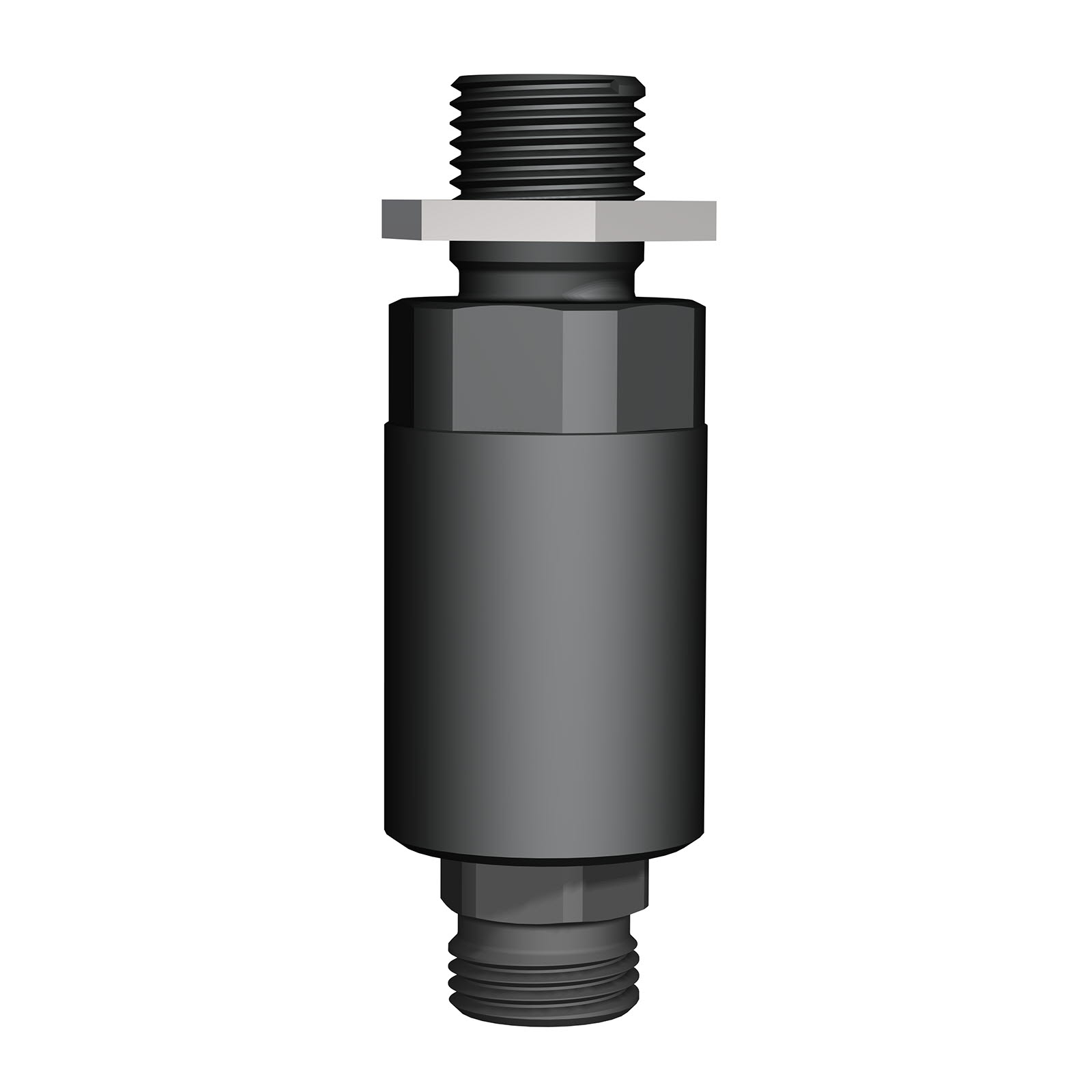

K100 M30x2,0 20S K
Technical data
| Part No. | 9010142 |
|---|---|
| Type | Male x Male |
| Type of connection | M-M |
| Max work pressure | 40 MPa |
| Pressure class | 20S |
| Seal kit | 6009089 |
| 1.4 kg |
M = Metric Temperature range (standard) = -30° C - +100° C Pressures as listed should be used as guide only and not as a specification.
K = Bulkhead
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| K100 M30x2,0 20S K | |
|---|---|
| B1 | M30 x 2,0 |
| B2 | M30 x 2,0 |
| L | 145 mm |
| ØD | 16 mm |
| NV1 | 30 mm |
| NV2 | 46 mm |
| ØA | 50 mm |
| X | 34 mm |
| Y | 6 mm |
