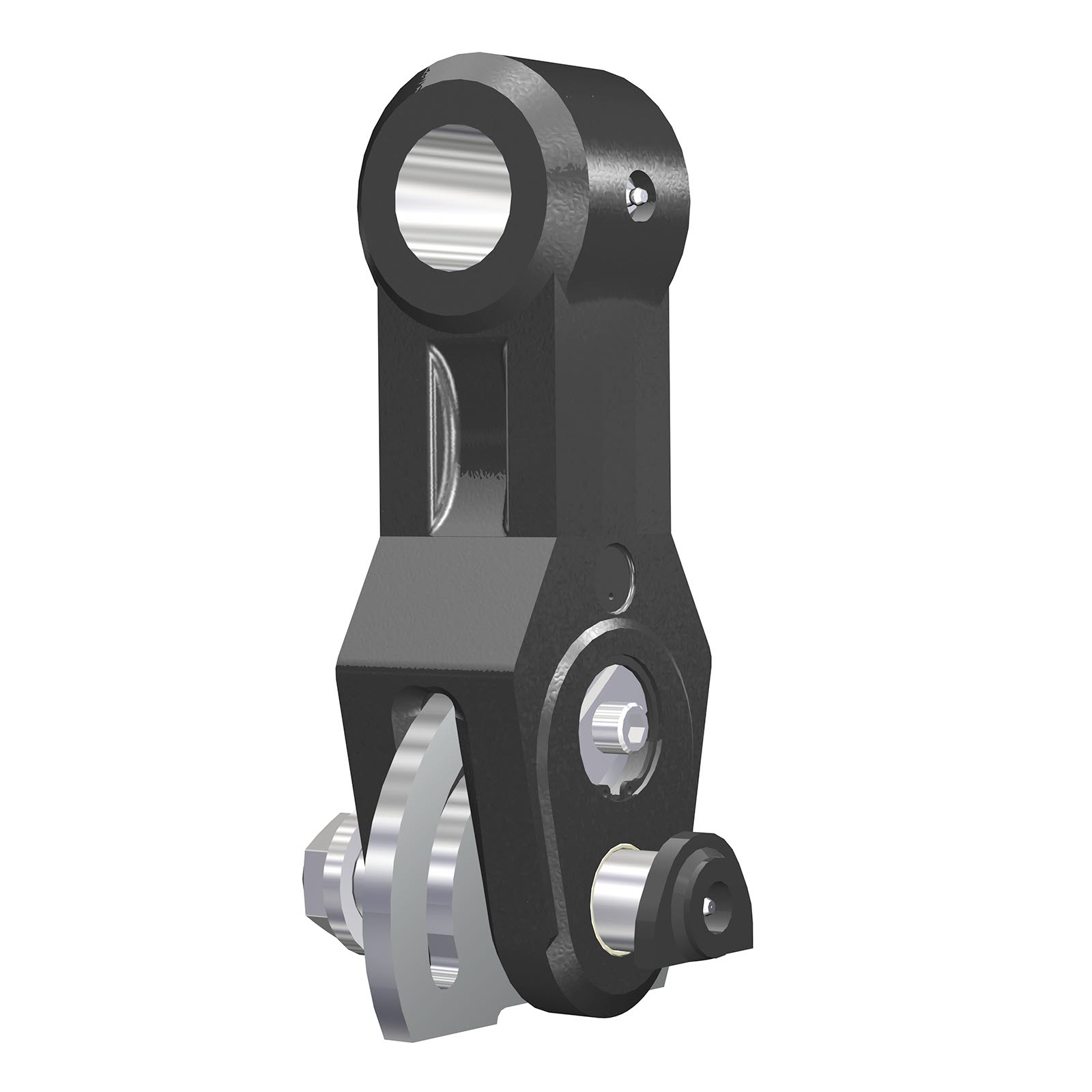

Single swing damper 80-80


Technical data

Part No. 5006600
Brake against rotator Disc brake
Upper interface 80 mm
Lower interface 80 mm
14 kg
100 kN

Bushing

Diameter, upper bushing (C) Bronze ManganBronze Composite
Ø45 mm 2 x 1003193 2 x 5006672 -
Ø40 mm - 2 x 5006685 1 x 5002401
Ø35 mm - 2 x 5006687 1 x 5002402
Ø30 mm - - 1 x 5002403
Ø25 mm - - 1 x 5002404

The product is supplied with a pin and bushing in the lower position. The product is supplemented with a bushing in the upper position according to the table.

We reserve the right to make product changes. For further technical information relating to integration, please contact rotator@indexator.com

Single swing damper 80-80
A 80 mm
B Ø35 mm
C See table
G 80 mm
H 240 mm
Bushing
Diameter, upper bushing (C) Bronze ManganBronze Composite
Ø45 mm 2 x 1003193 2 x 5006672 -
Ø40 mm - 2 x 5006685 1 x 5002401
Ø35 mm - 2 x 5006687 1 x 5002402
Ø30 mm - - 1 x 5002403
Ø25 mm - - 1 x 5002404
