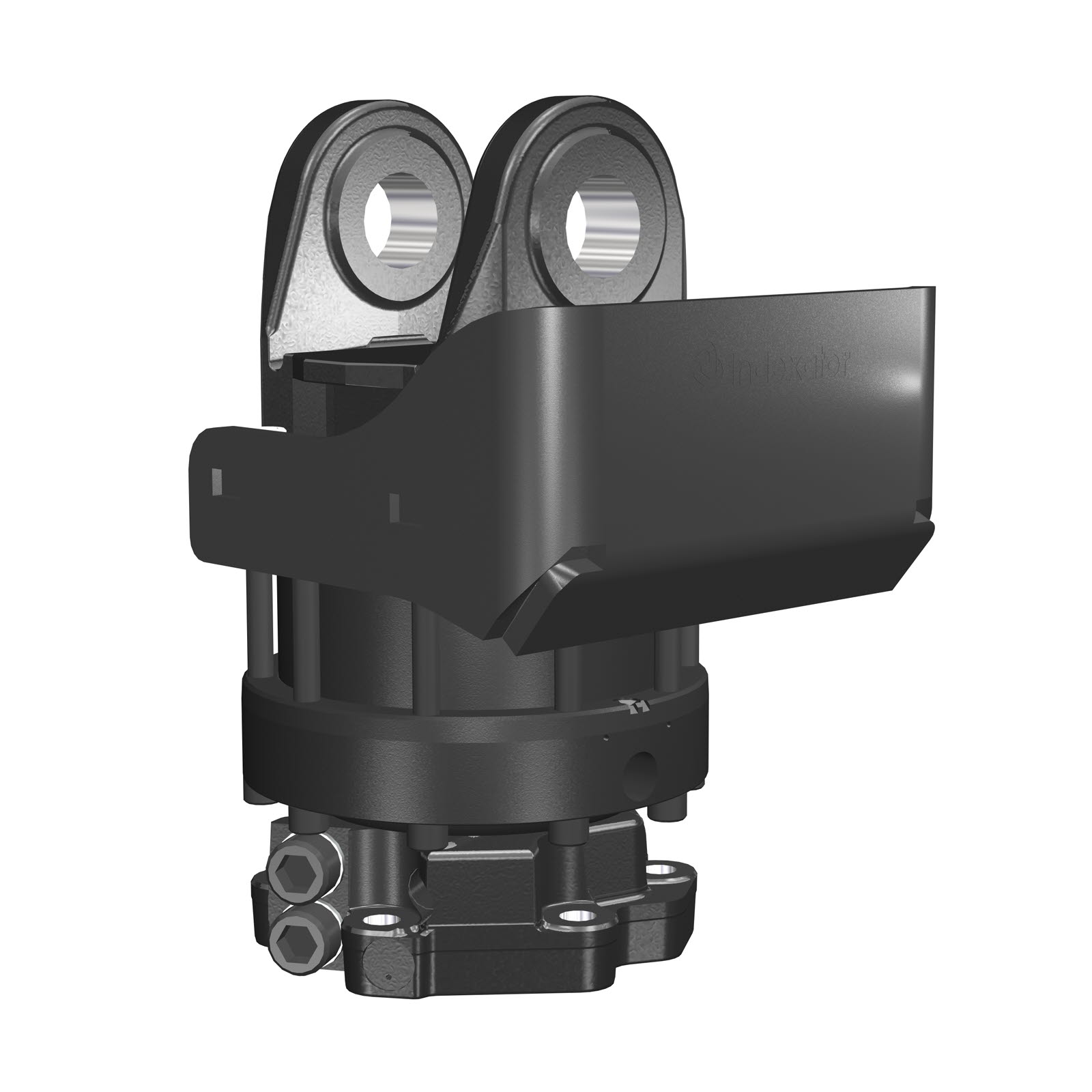

Rotator GV 12S A Y HD


Technical data

Part No. 5120002
Type of rotator Grapple rotator
62 kg
360°
100 kN
50 kN
2200 Nm
25 l/min
25 MPa
30 MPa
30 MPa

Function

Protected Hose Routing

Interface

Upper interface 101 mm
Lower interface Ø 173 mm

Rotator with only axial connections for a grapple function.

Rotators with the term HD has a hose guard with extra thick material (10 mm), compared to rotators designated with Y or Y XL (6 mm).

Adapter sets are available for alternative connections.

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

GV 12S A Y HD
A 101 mm
B Ø45 mm
C Ø173 mm
D Ø17 mm
F 30 mm
H 333 mm
K 38,5 mm
L Ø229 mm
M 179 mm
N 10 mm
Connections
Upper connection G 1/2
Lower connection G 1/2
