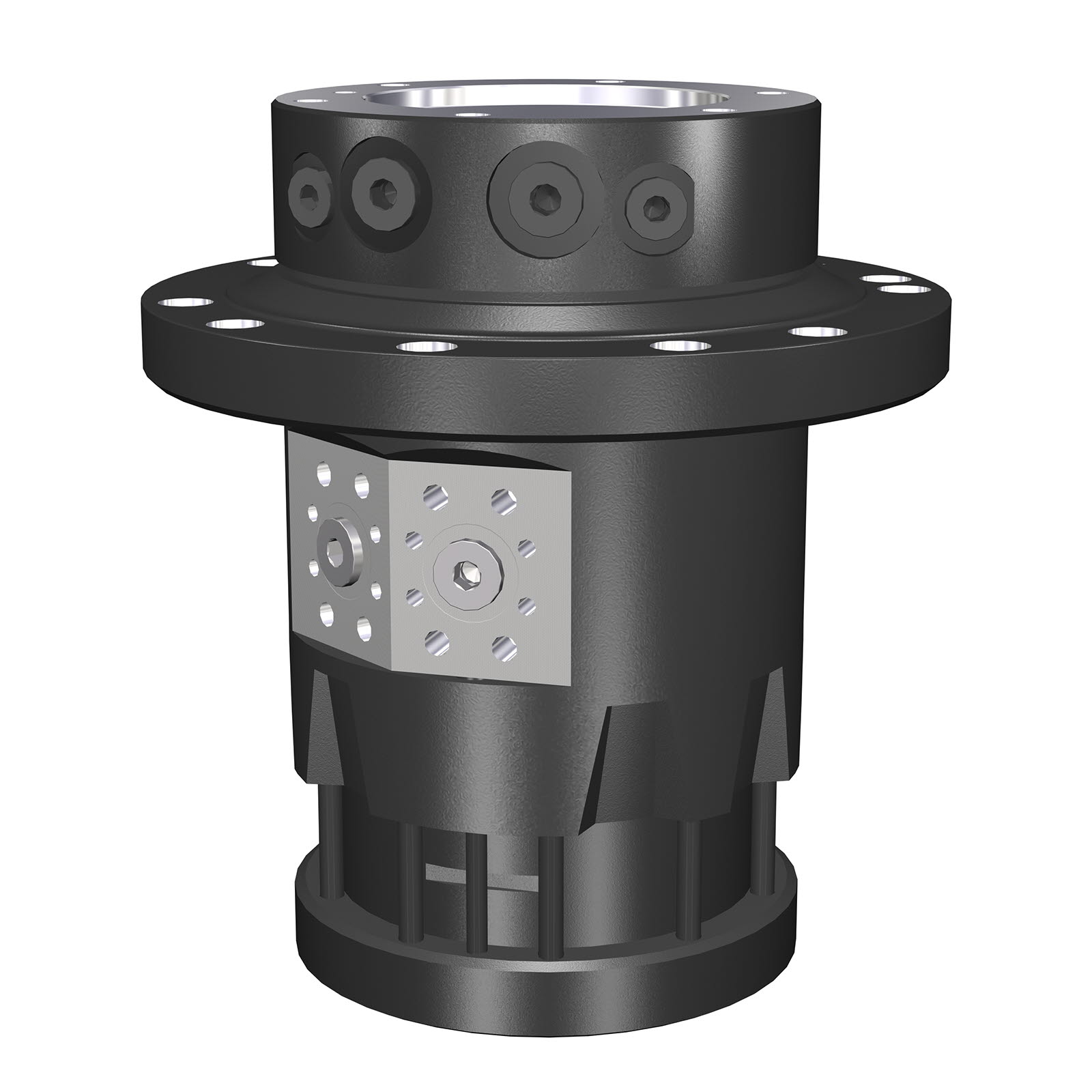

Rotator IR 20 M20


Technical data

Part No. 8000509
Type of rotator Grapple rotator
146 kg
360°
±450 kN
±150 kN
4100 Nm
35 l/min
25 MPa
35 MPa
35 MPa

Interface

Upper interface 255 mm
Lower interface Ø 260 mm

Pressure limiting valves fitted in the motor.

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

IR 20 M20
A Ø255 mm
B M20
E Ø220 mm
F Ø380 mm
G 36 mm
H Ø26 mm
I Ø340 mm
J 60°
K 72°
L 420 mm
M 293 mm
O Ø250 mm
Q 60°
S Ø260 mm
Connections
Upper G G0 G 1
R G 1/2
Lower G SAE 3000 DN 25 / SAE 6000 DN 32 / G 1
G0 SAE 3000 DN 25 / SAE 6000 DN 32 / G 1
G0 SAE 3000 DN 25 / SAE 6000 DN 32 / G 1
