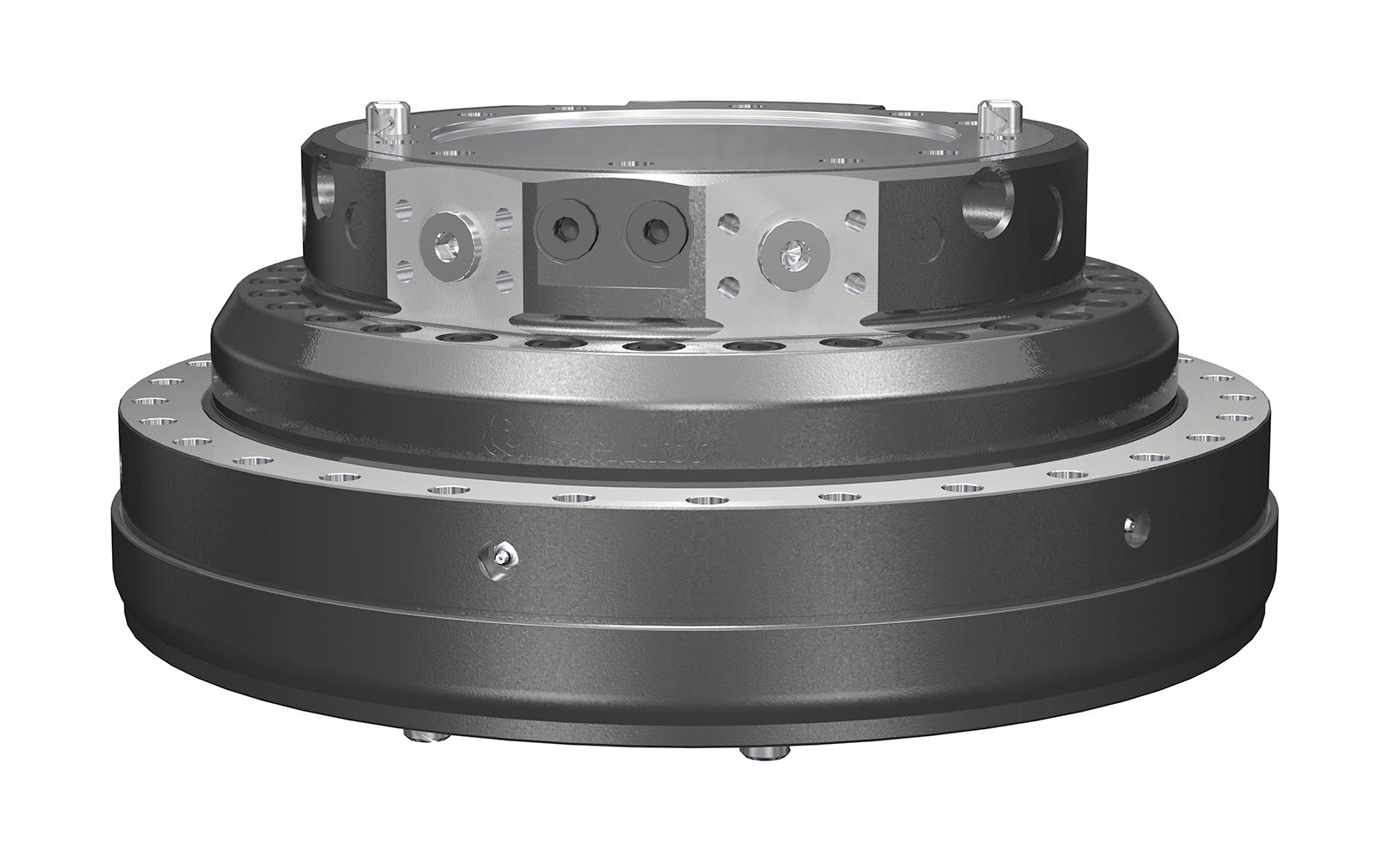

Rotator XR 600


Technical data

Part No. 8600000
Type of rotator Grapple rotator
264 kg
360°
±850 kN1
±300 kN
±200 kN
7000 Nm
40 l/min
25 MPa
35 MPa
35 MPa

Interface

Upper interface 300 mm
Lower interface Ø 535 mm

1 Max axial load static indicate theoretical max load for hanging applications without accelerations.

Oil distributor ordered separately

Pressure limiting valves fitted.

For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

XR 600
A Ø384 mm
B M24
D Ø260 mm
E Ø300 mm
F Ø575 mm
G 103 mm
H Ø17,5 mm
I Ø535 mm
J 12°
K Ø565 mm
L 231 mm
M 37°
N 30°
O Ø22 mm
P 12°
Q M12
R 72°
S Ø140 mm
T 33 mm
Connections
Upper G G0 SAE 6000 DN 25
R G 1/2
