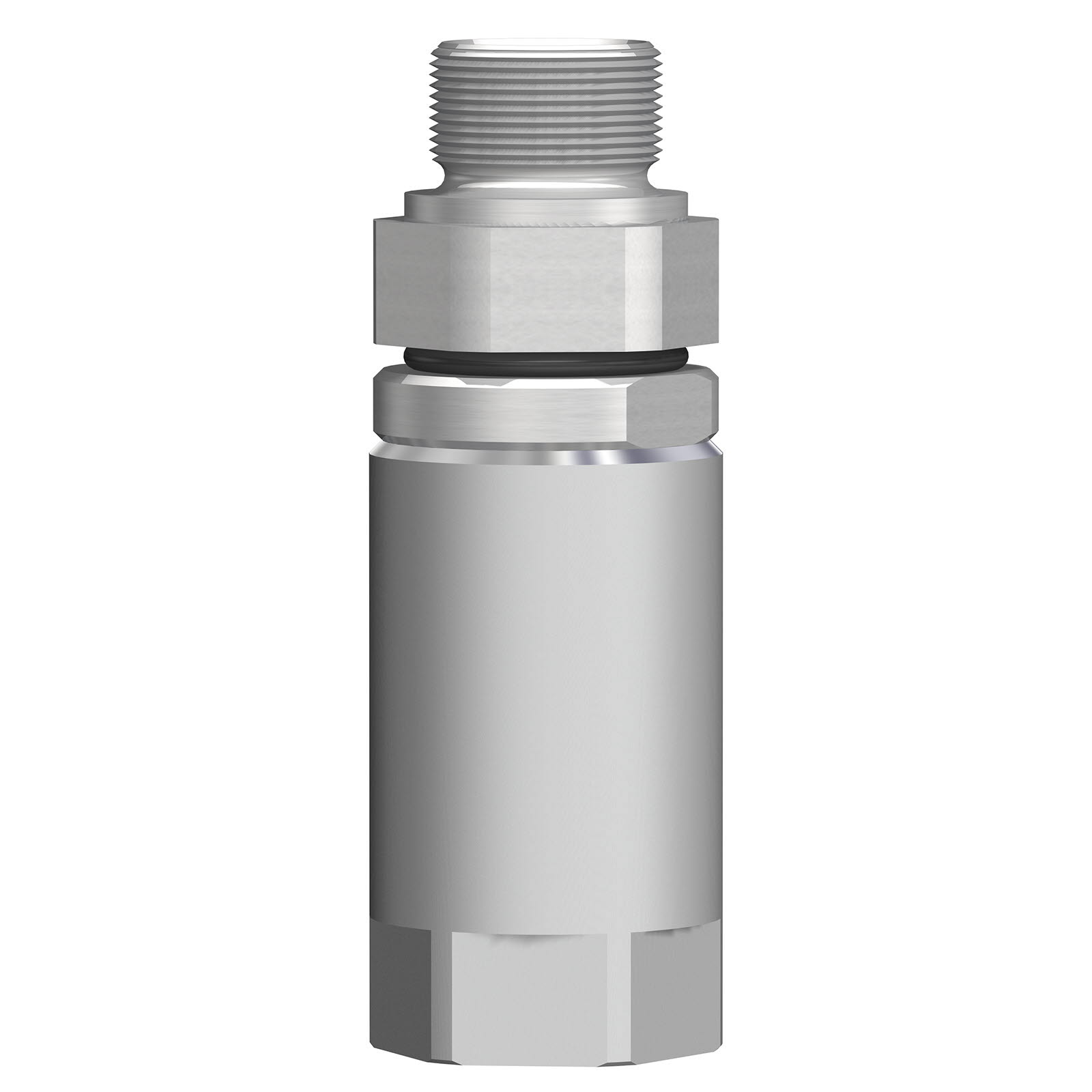

IDL G3/8 IxU H

Technical data

Part No. 5001615
Type Female x Male
Type of connection G-G
Max work pressure 35 MPa
Seal kit 5001638
0.52 kg

H = Seal for high temperature or coolant (glycol) G = BSP, 60° cone Temperature range = -20° C - +200° C Max temperature for glycol = +55° C Pressures as listed should be used as guide only and not as a specification.

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact

IDL G3/8 IxU H
B1 G 3/8
B2 G 3/8
L 92 mm
ØD 8 mm
NV 32 mm
ØA 35 mm
