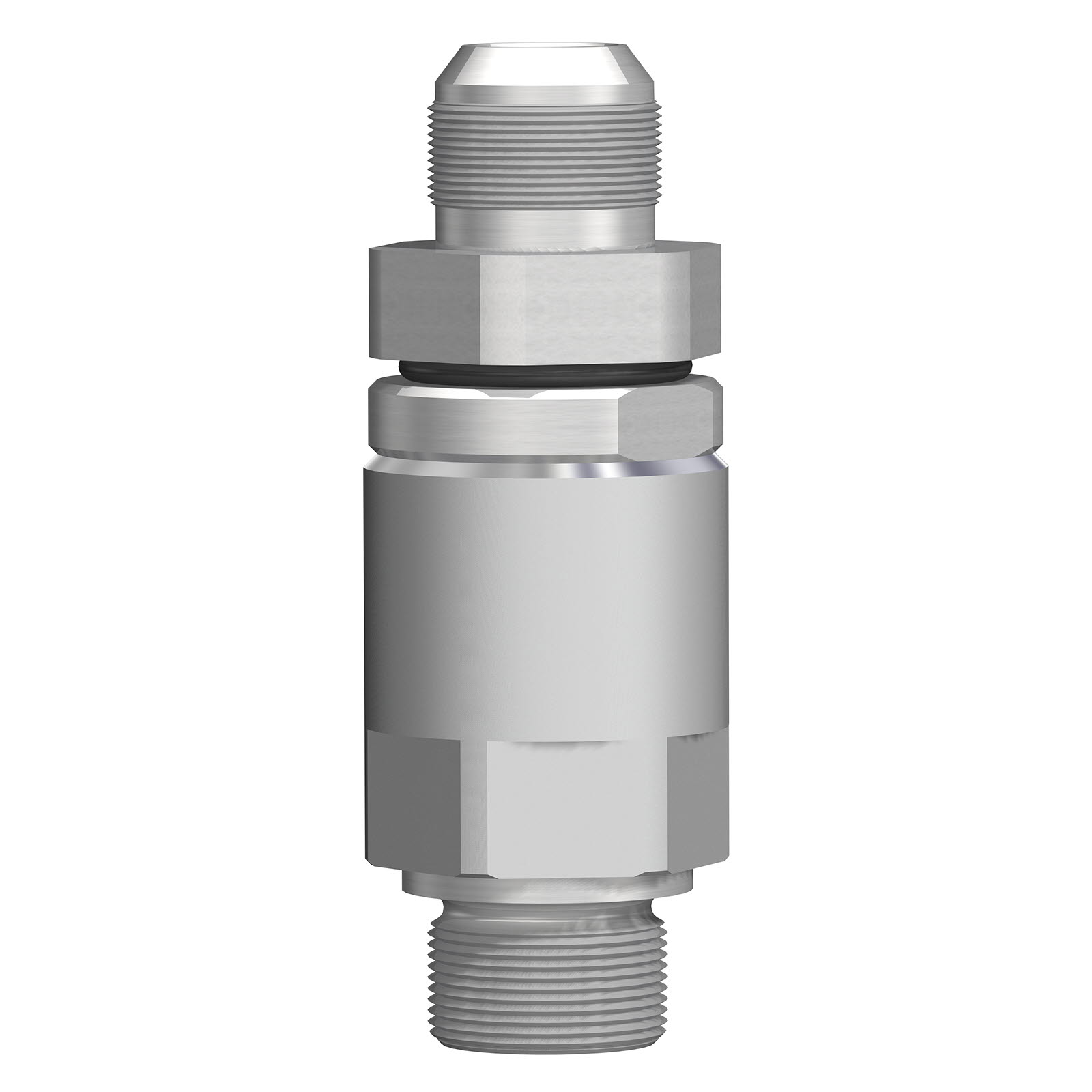

IDL G 3/4 - 1 1/16”-12 UN

Technical data

Part No. 5001628
Type Male x Male
Type of connection G-JIC
Max work pressure 35 MPa
JIC size 12
Seal kit 5001633
0.55 kg

JIC cone, external, 37° JIC internal, SAE O-ring Temperature range (standard) = -30° C - +100° C

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact

IDL G 3/4 - 1 1/16”-12 UN
B1 G 3/4
B2 1 1/16”-12 UN
L 108 mm
ØD 16 mm
NV 36 mm
ØA 40 mm
