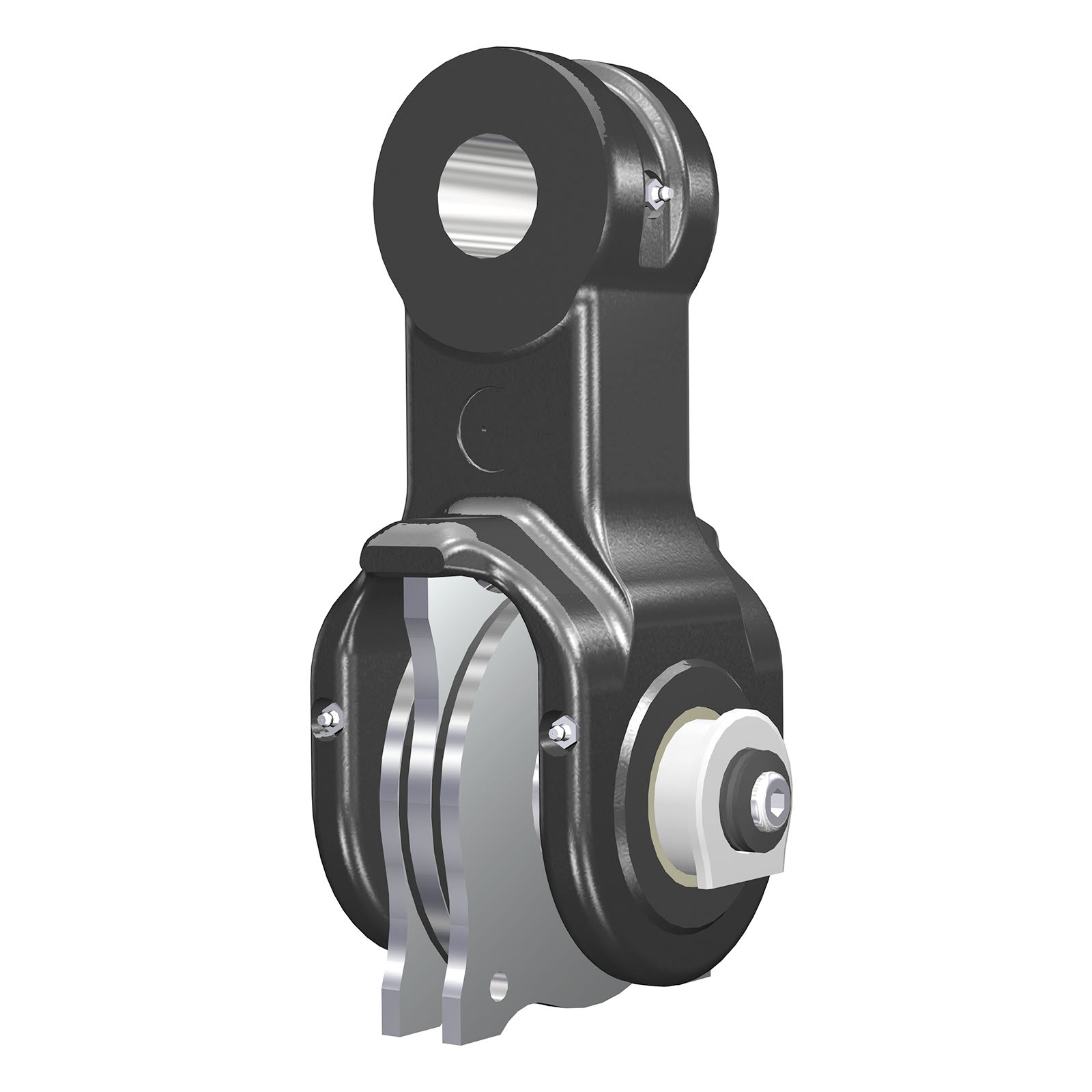

Single swing damper MPB1-80


Technical data

Part No. 5016550
Brake against rotator MPB1
Upper interface 80 mm
Lower interface MPB1 144 mm
30 kg
160 kN

Bushing

Diameter, upper bushing (C) Steel Bronze ManganBronze Composite
Ø45 mm 2 x 1002294 2 x 1003193 2 x 5006672 -
Ø40 mm 2 x 5002468 - 2 x 5006685 1 x 5002401
Ø35 mm - - 2 x 5006687 1 x 5002402
Ø30 mm - - - 1 x 5002403
Ø25 mm - - - 1 x 5002404

The product is supplied with a pin and bushing in the lower position. The product is supplemented with a bushing in the upper position according to the table.

We reserve the right to make product changes. For further technical information relating to integration, please contact rotator@indexator.com

Single swing damper MPB1-80
A MPB1
B MPB
C See table
G 80 mm
H 240 mm
Bushing
Diameter, upper bushing (C) Steel Bronze ManganBronze Composite
Ø45 mm 2 x 1002294 2 x 1003193 2 x 5006672 -
Ø40 mm 2 x 5002468 - 2 x 5006685 1 x 5002401
Ø35 mm - - 2 x 5006687 1 x 5002402
Ø30 mm - - - 1 x 5002403
Ø25 mm - - - 1 x 5002404
