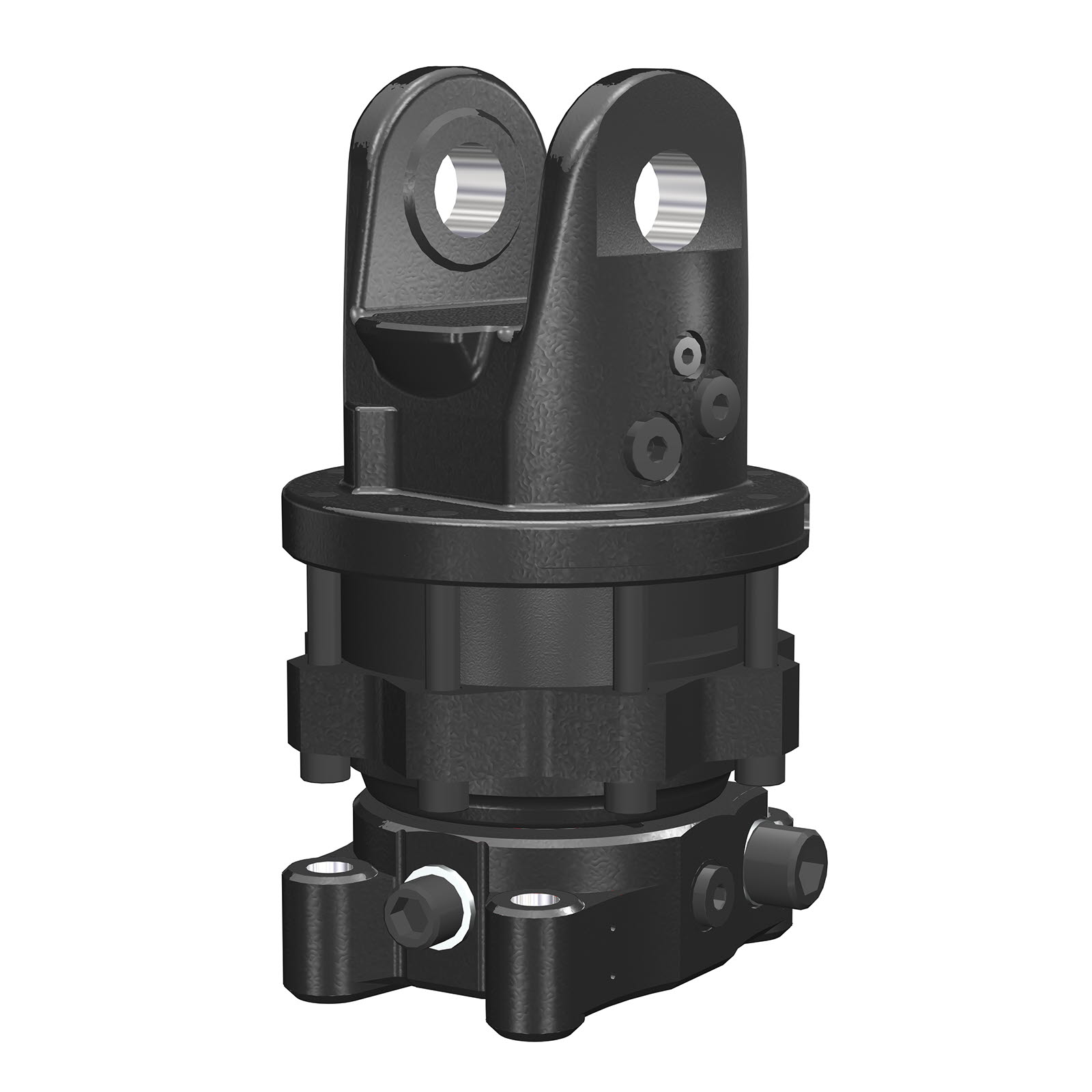

Rotator AV 4E I
Technical data
| Part No. | 5040017 |
|---|---|
| Type of rotator | Harvester head rotator |
| 31.7 kg | |
| 360° | |
| 45 kN | |
| 25 kN | |
| 1150 Nm | |
| 12 l/min | |
| 25 MPa |
Interface
| Upper interface | 80 mm |
|---|---|
| Lower interface | Ø 173 mm |
Adapter sets are available for alternative connections.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| AV 4E I | |
|---|---|
| A | 80,5 mm |
| B | Ø35 mm |
| C | Ø173 mm |
| D | Ø17 mm |
| F | 46 mm |
| H | 281 mm |
| K | 34 mm |
| L | Ø207 mm |
| T | 30° |
| Connections | ||
|---|---|---|
| Upper connection | G 3/8 | |
| Lower connection | G 3/8 | |
