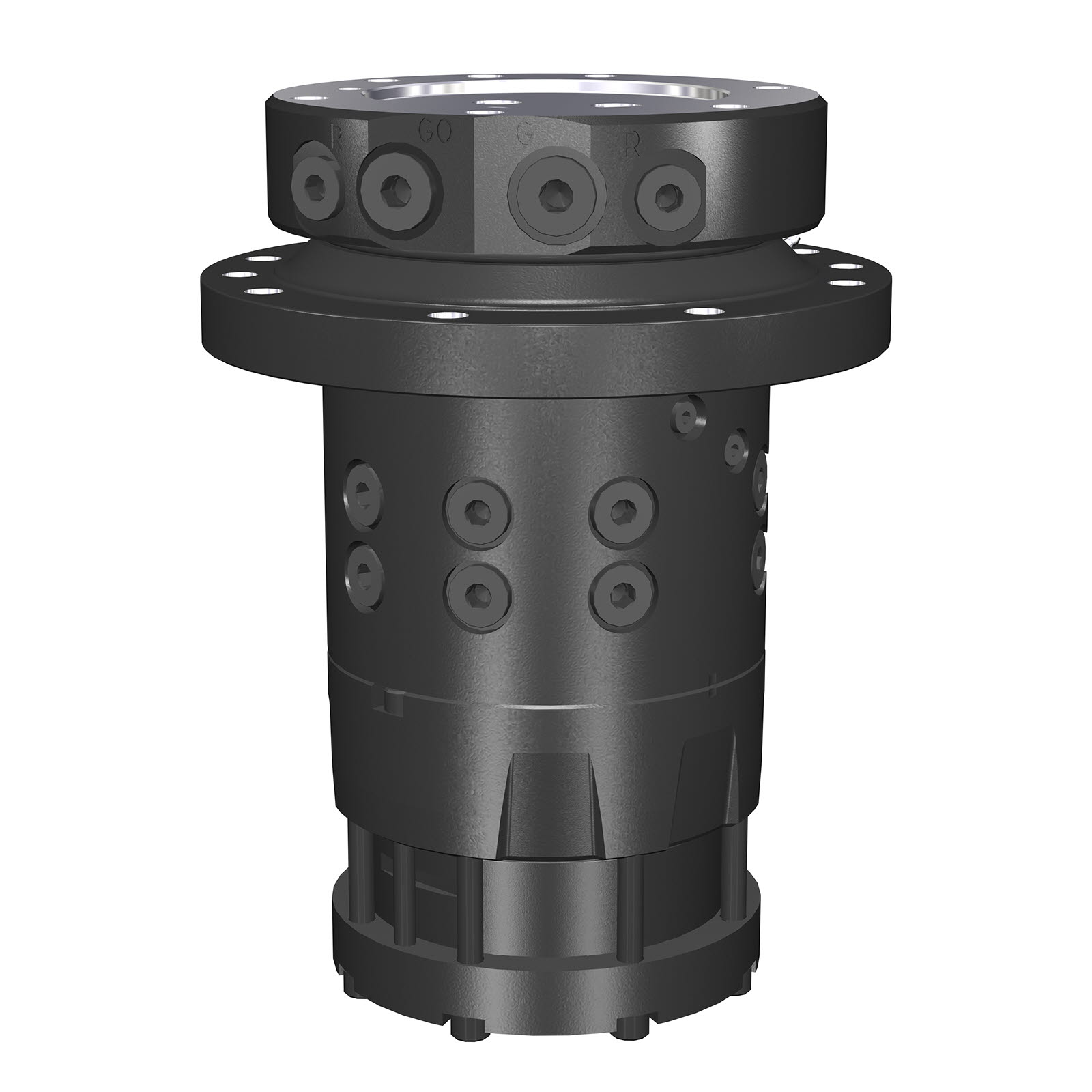

Rotator IR 10-5 M20


Technical data

Part No. 8000244
Type of rotator Grapple rotator
94.9 kg
360°
±250 kN
±70 kN
2100 Nm
25 l/min
19 MPa
35 MPa
35 MPa

Interface

Upper interface 245 mm
Lower interface Ø 205 mm

This model has 4 and 5 connection options.

Pressure limiting valves fitted in the motor.

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

IR 10-5 M20
A Ø245 mm
B M20
E Ø210 mm
F Ø305 mm
G 30 mm
H 17 (x8)
I Ø270 mm
J 45°
L 409 mm
M 301 mm
O Ø200 mm
P Ø20 mm
Q 60°
S Ø205 mm
Connections
Upper G G0 G 3/4
R G 1/2
Lower G G 1/2 (x8)
G0 G 1/2 (x8)
