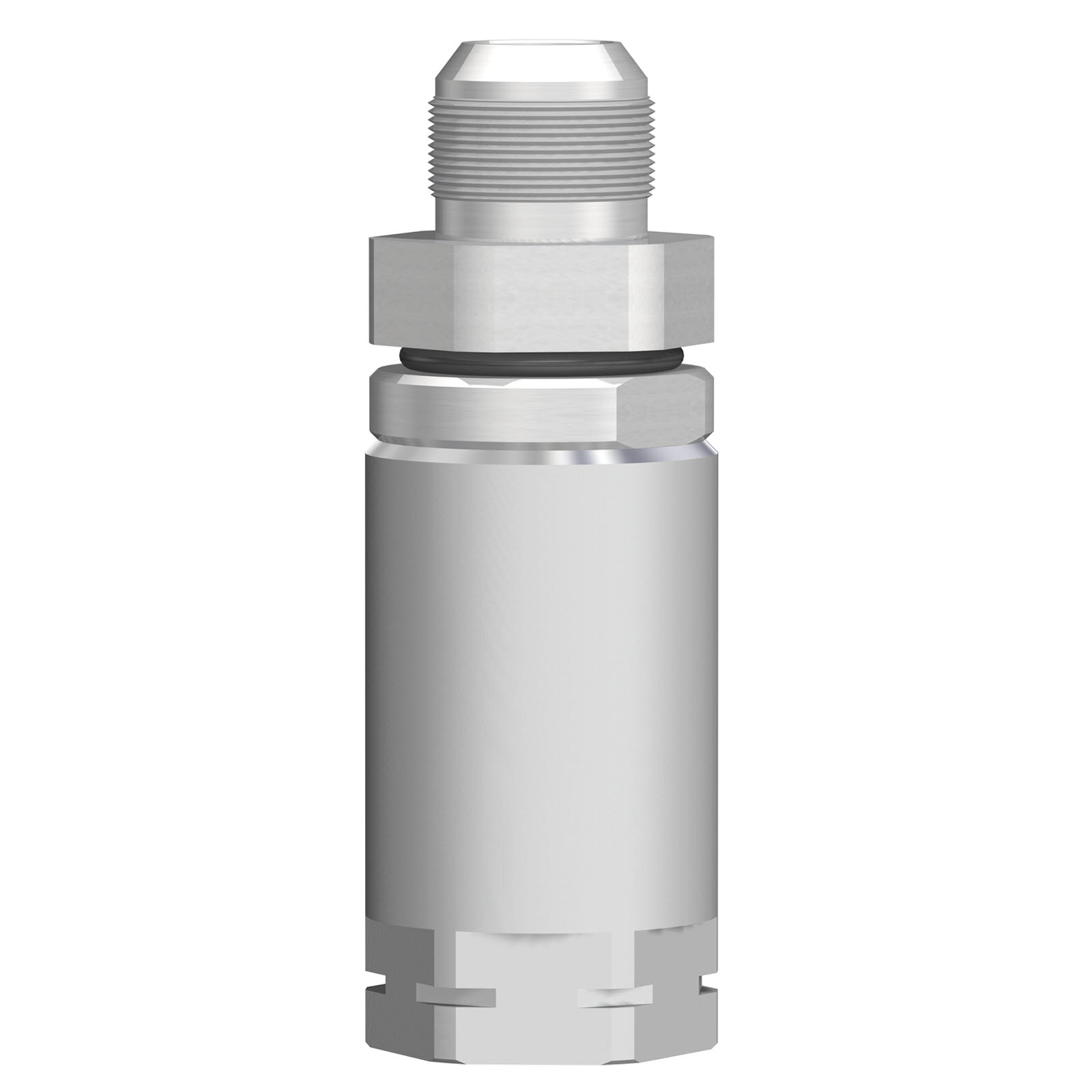

IDL G 1/2 - 7/8”-14 UNF S


Technical data

Part No. 5001695
Type Female x Male
Type of connection G-JIC
Max work pressure 35 MPa
JIC size 10
Seal kit 5001632
0.48 kg

JIC cone, external, 37° JIC internal, SAE O-ring Temperature range (standard) = -30° C - +100° C

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

IDL G 1/2 - 7/8”-14 UNF S
B1 G 1/2
B2 7/8” UNF S
L 100 mm
ØD 12 mm
NV 32 mm
ØA 35 mm
