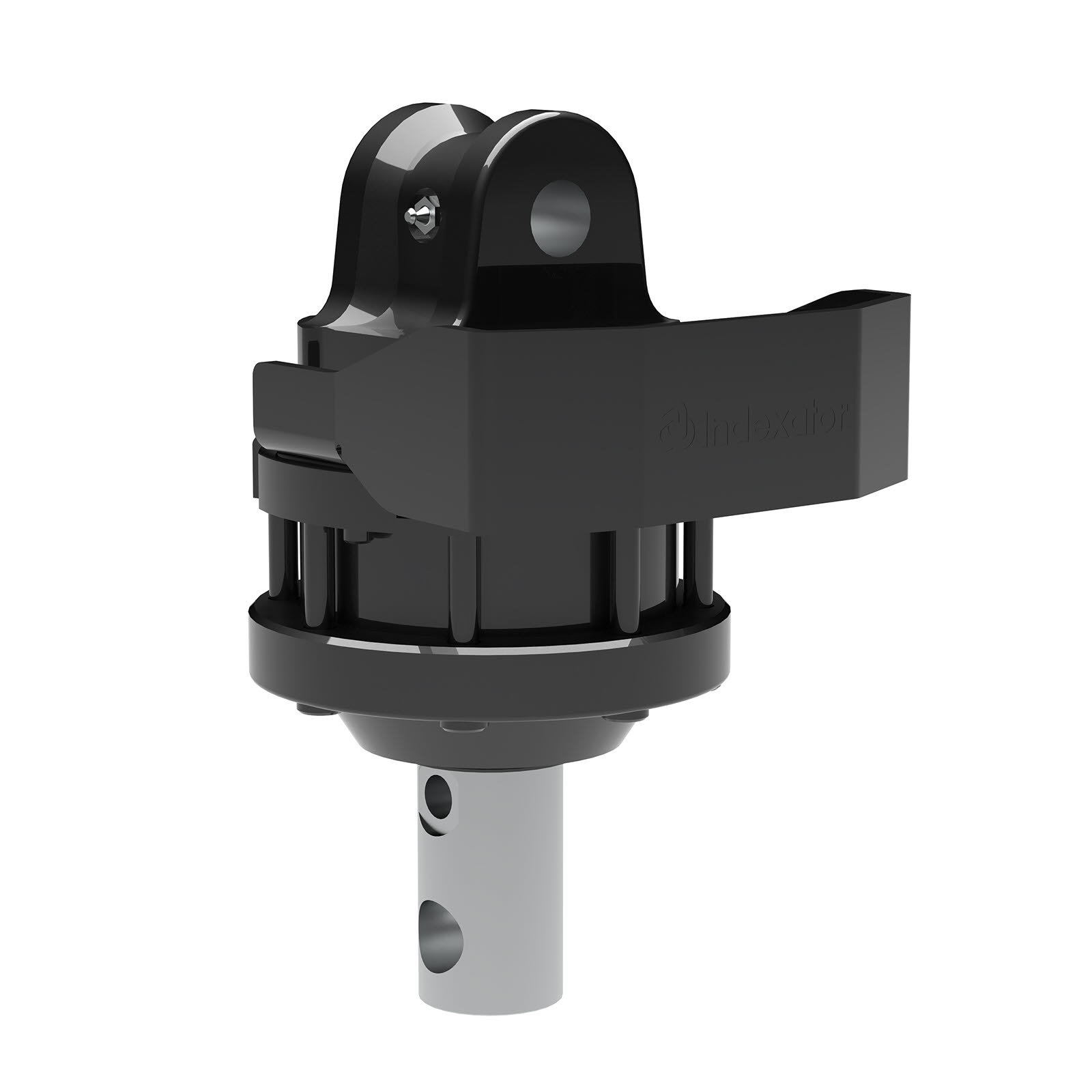

Rotator GV 3 -49,5/25 P


Technical data

Part No. 5002300
Type of rotator Grapple rotator
17.4 kg
360°
30 kN1
12.5 kN
950 Nm
10 l/min
25 MPa
20 MPa2
30 MPa

Interface

Upper interface 75 mm
Lower interface Ø 49,5 mm

1 40 kN when mounted to a piece goods crane.

2 25 MPa when mounted to a piece goods crane.

Rotator where the connections and tap hole through the shaft are parallel.

Adapter sets are available for alternative connections.

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

GV 3 -49,5/25 P
A 75 mm
B Ø25 mm
M 152 mm
O 243 mm
P Ø49,5 mm
Q Ø25 mm
U 268 mm
V 178 mm
Connections
Upper connection G 3/8
Lower connection G 3/8
